irSetupDiffer for iRacing

View and compare iRacing setups

irSetupDiffer is a Windows app for viewing and comparing iRacing car setups. Open a setup from a live session or saved IBT telemetry file to read every parameter, or load a second one to see exactly which parameters changed and by how much. It works with every iRacing car and track.

Download for Windows See how it works

Windows 10 or Windows 11 · iRacing required

Built for practical iRacing setup comparison

Two setup sources

Load either slot from an IBT telemetry file or directly from a connected, live iRacing session.

Find the meaningful changes

Compare values side by side, see numeric deltas, and switch to differences-only when you want a faster tuning review.

Read setups your way

Use the compact parameter list for detail, or the car-layout view to review setup sections in a vehicle-oriented layout.

How to view and compare iRacing setups

  1. 1
    Load Setup 1

    Choose a live session or an IBT telemetry file. That's all you need to view a setup.

  2. 2
    Load Setup 2 to compare

    Mix sources freely: compare live-to-live, file-to-file, or live-to-file.

  3. 3
    Focus on the changes

    Filter to differences and narrow the comparison to the categories you need.

What’s new in irSetupDiffer

The current app makes setup changes easier to scan without losing detail. Its shared source and filter pane keeps both comparison views in sync, while live connection feedback makes the iRacing status clear.

irSetupDiffer is built on iRacingTelemetrySDK, an open-source C# library for reading live iRacing sessions and IBT telemetry files.

  • Parameter list: grouped categories, side-by-side values, and highlighted differences.
  • Car layout: a collapsible, vehicle-oriented view of setup sections.
  • Focused filtering: show all parameters or differences only, then select categories.
  • Live status: clear feedback when iRacing connects and live loading becomes available.
  • Snapshot workflow: capture a setup, make a change, and load the next snapshot into the other slot.
  • Update notifications: see when a newer version is available in the app.

See the setup comparison workflow

irSetupDiffer car-layout view comparing tire pressures and temperatures for two setups, with front and rear axles laid out left and right
The car-layout view arranges each setup section around the car, with Setup 1, Setup 2, and the difference side by side.

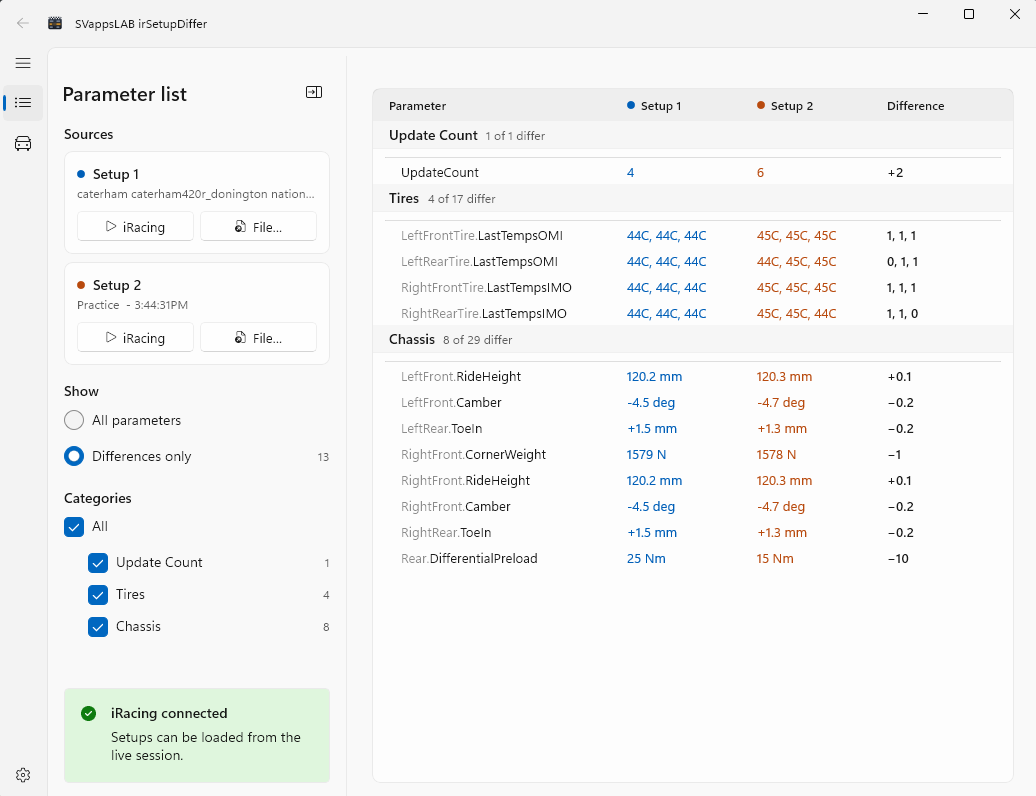

irSetupDiffer parameter list filtered to differences only, showing each changed tire and chassis value with its delta
The parameter list, filtered to differences only, shows every changed value and by how much.

Frequently asked questions

Can I view a single iRacing setup without comparing?

Yes. Load just Setup 1 from a live session or an IBT file to read every setup parameter, grouped by category, without loading the car in iRacing. Add Setup 2 whenever you want to compare.

How do I compare two iRacing setups?

Load Setup 1 and Setup 2 from a live session or IBT files. The app displays the values side by side and calculates the difference for each comparable parameter.

Where are iRacing IBT telemetry files?

iRacing commonly saves telemetry in your Documents/iRacing/telemetry folder. Use the File button for either setup slot to browse to the IBT file you want to inspect.

Do I need telemetry recording enabled to get IBT files?

Yes, for IBT files. iRacing only writes an IBT file when telemetry recording is enabled. Loading a setup from a live session doesn't require telemetry recording.

Can I compare setups while iRacing is running?

Yes. When iRacing is connected, load the current live-session setup into either slot. This is useful for comparing snapshots as you tune.

Why is the Load from iRacing button greyed out?

That button is only enabled when iRacing is running and connected. Start iRacing and load into a session, and it will become available.

What's the difference between the parameter list and car-layout views?

The parameter list is a compact, detail-first grouping of setup categories. The car-layout view arranges the same sections around a vehicle diagram for a more visual review. Switch between them at any time.

Does it work with every iRacing car and track?

Yes. irSetupDiffer works with every iRacing car and track.

Does irSetupDiffer work on macOS?

No. irSetupDiffer is a Windows-only app and does not run on macOS.

Is irSetupDiffer free?

Yes. irSetupDiffer is free to download and use on Windows.

How do updates work?

irSetupDiffer notifies you in-app when a new version is available. You choose when to accept and install it; updates are never applied automatically.

Does irSetupDiffer modify my setups or upload my data?

No. irSetupDiffer is read-only — it never writes changes back to iRacing or your files. Everything runs locally, and your setup data is never uploaded anywhere.
